  1. User Guide

Manage Helm Apps

PreviousUse Resource WatcherNextManage Argo CD Apps

Last updated 6 months ago

The Devtron Dashboard displays the helm applications deployed to your cluster and lets you deploy your own helm charts or third-party charts (e.g. postgresql) using the .

View Helm Apps

  1. From the left pane, go to Applications.

  2. Click the Helm Apps tab.

You can see the Helm Apps available in your cluster. If you have connected more than one cluster to Devtron, you can use the Cluster selection dropdown to view the respective Helm Apps in your other clusters.

Deploy Helm Charts

1. Discover the Chart from Chart Store

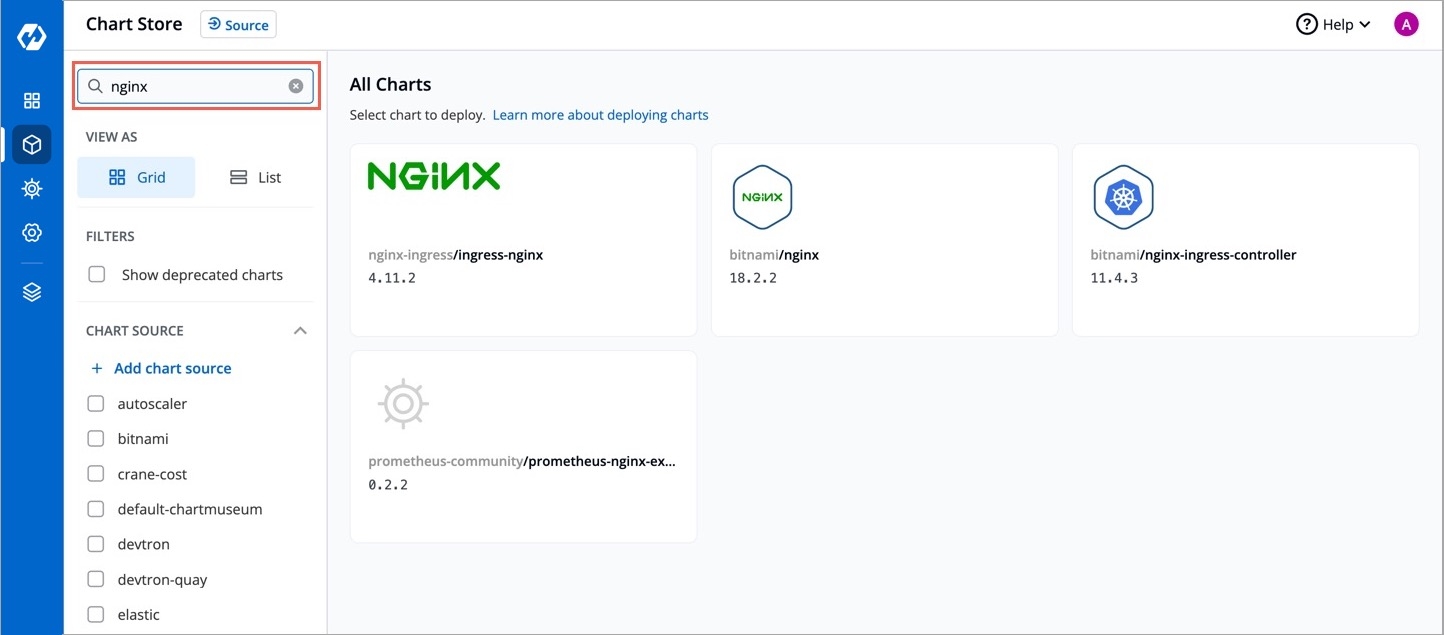

  • Select the Charts section from the left pane, you will be landed to the Chart Store page.

  • Search nginx or any other charts in search filter.

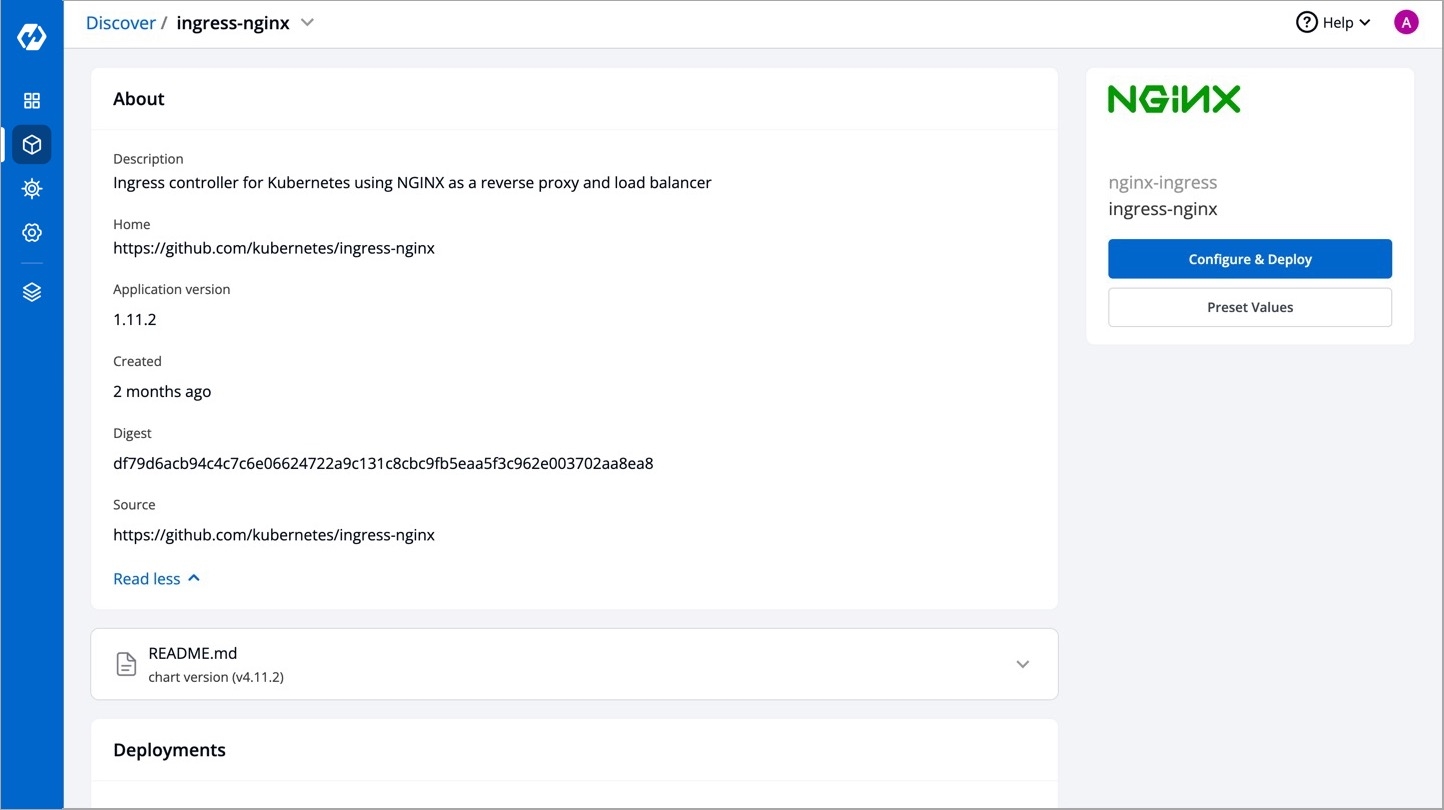

  • Click on chart and it will redirect you to Chart Details page where you can see a number of instances deployed by using the same chart.

2. Configure the Chart

  • You may refer the README.md attached to the chart to know more about the chart configurations.

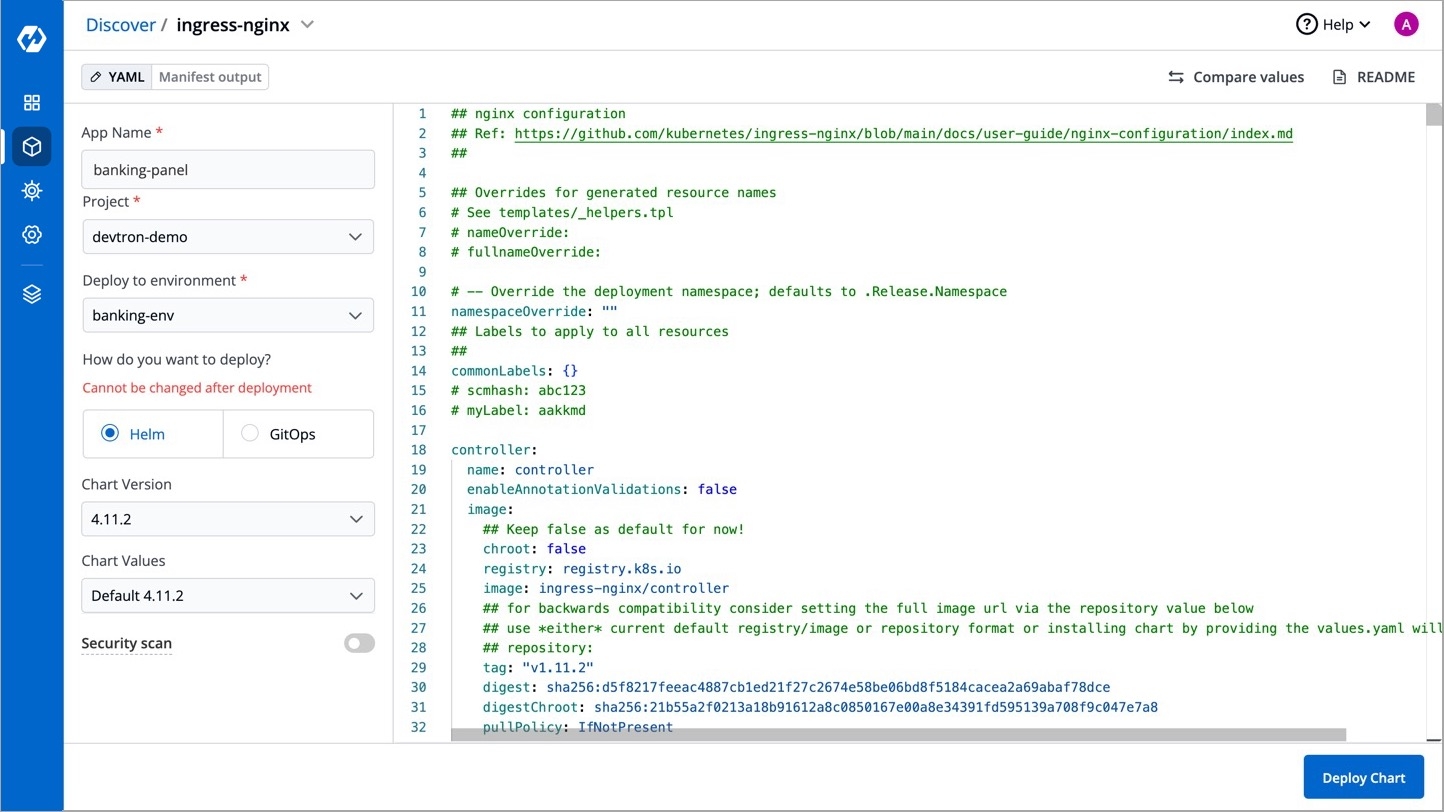

  • Click Configure & Deploy and enter the following details:

    Key
    Description

    App Name

    Unique name of the chart

    Project

    Select the project of the application

    Deploy to Environment

    Environment in which you want to deploy the chart

    Chart Version

    Shows all available versions of the chart. Select the version of the chart to be used.

    Chart Value

  • Once you choose a preferred chart version, chart value, and update the values.yaml using the editor, click Deploy to deploy the chart.

Create a Preset Value

  • You can use the default values or create preset value by clicking on Create preset value.

  • You can name your preset value, select a chart version, and change the configurations in the YAML file using the editor.

  • Click on Save Value to save the template, and go back and choose your template from the dropdown for deployment.

3. Check Deployment Status

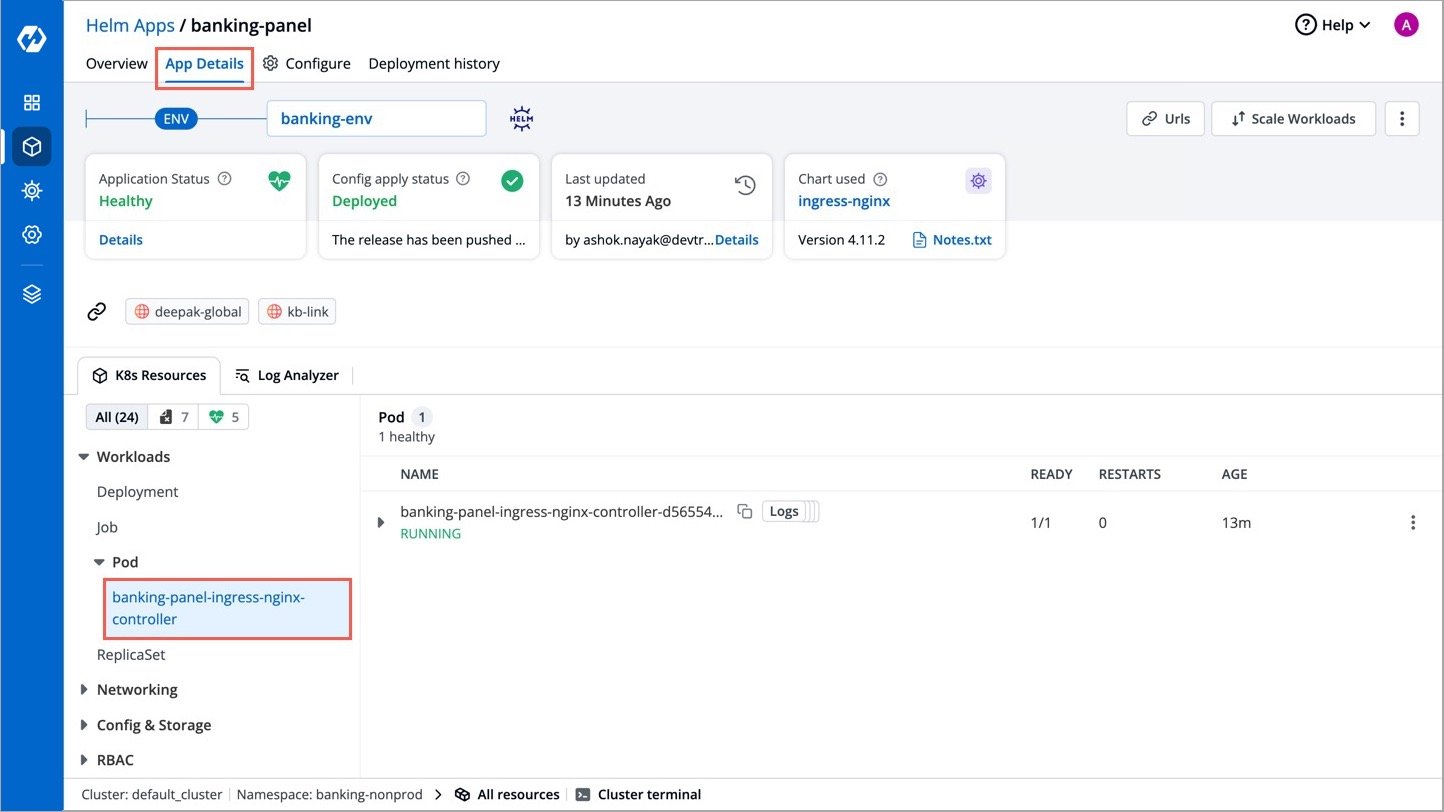

After clicking the Deploy button, you will land on the App Details page that shows the status of the chart deployment.

The status of the chart should be Healthy. It might take a few seconds after initiating the deployment of the chart. In case the status of the deployment shows Degraded or if takes a long time to get deployed, click Details in Application Status section on the same page or check the logs of the pods to debug the issue.

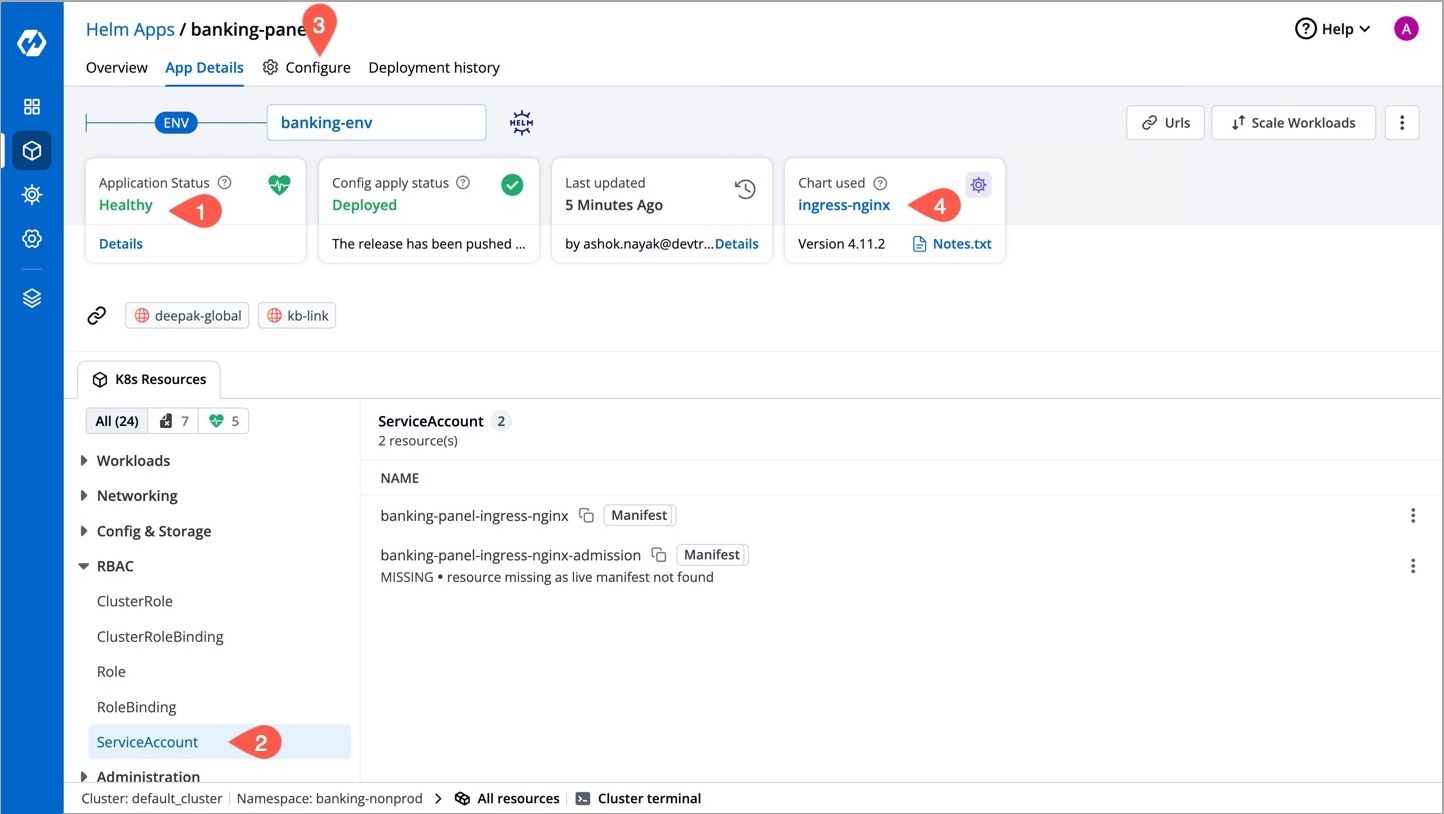

  1. Shows status of deployed chart.

  2. Shows the controller service accounts being used.

  3. In the Configure tab, you can update, upgrade, or delete your chart instance.

  4. From the Chart used section you can go to the charts page where you can see all the running instances of this chart.

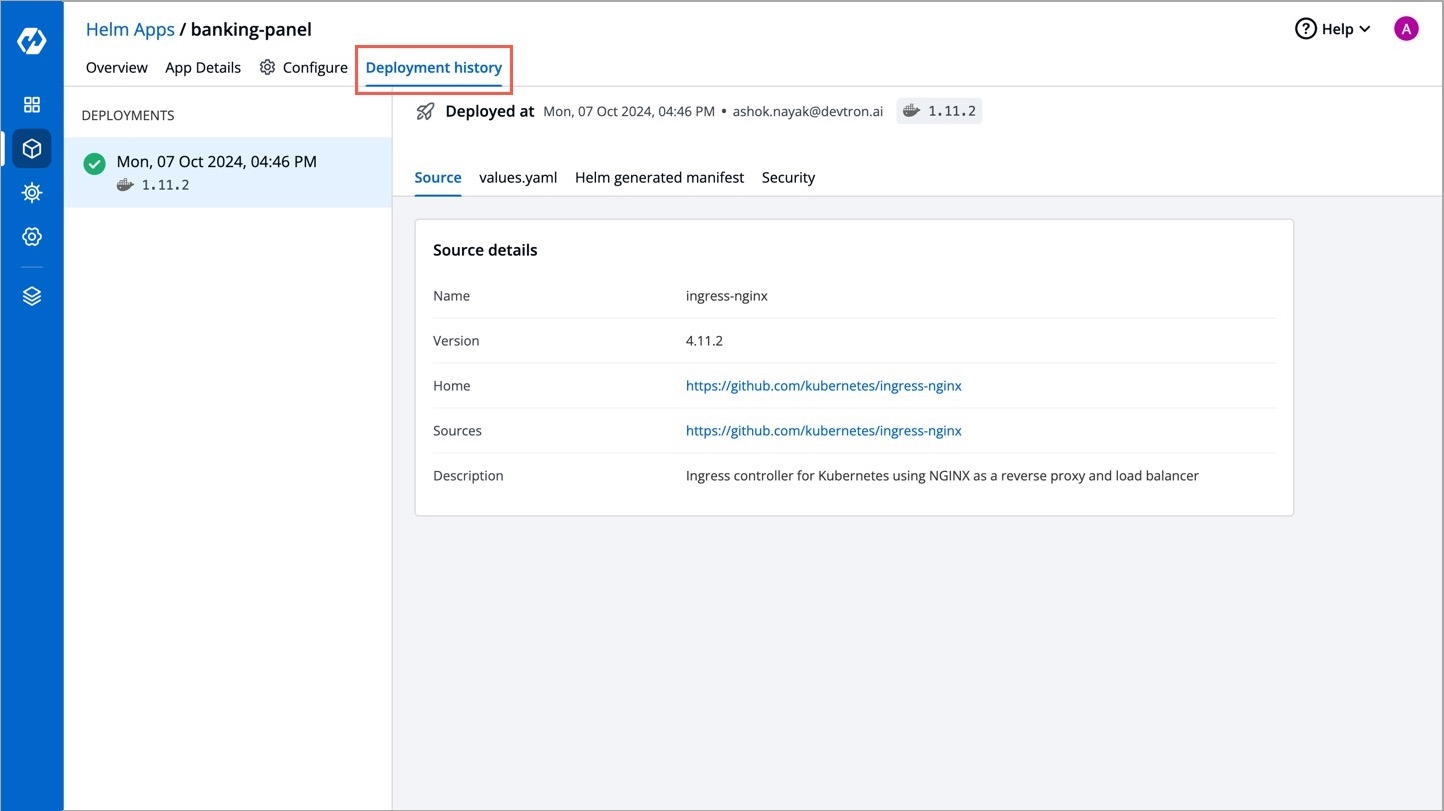

  5. Click the Deployment history tab to view the deployment history of Helm application and values.yaml corresponding to the deployment.

Update or Upgrade Helm Chart

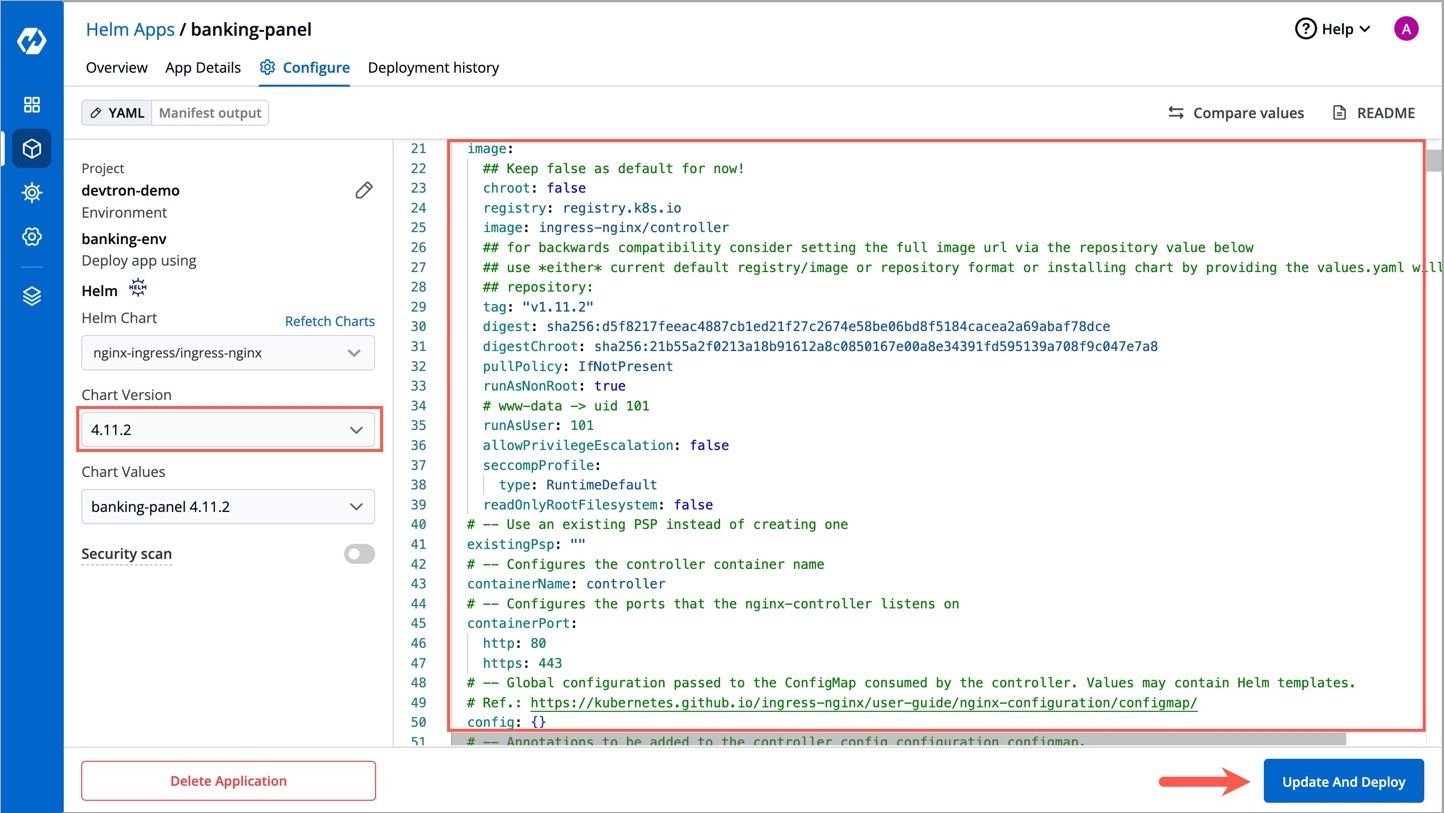

  • For update, you can change its Chart Version or values.yaml and then click Update And Deploy.

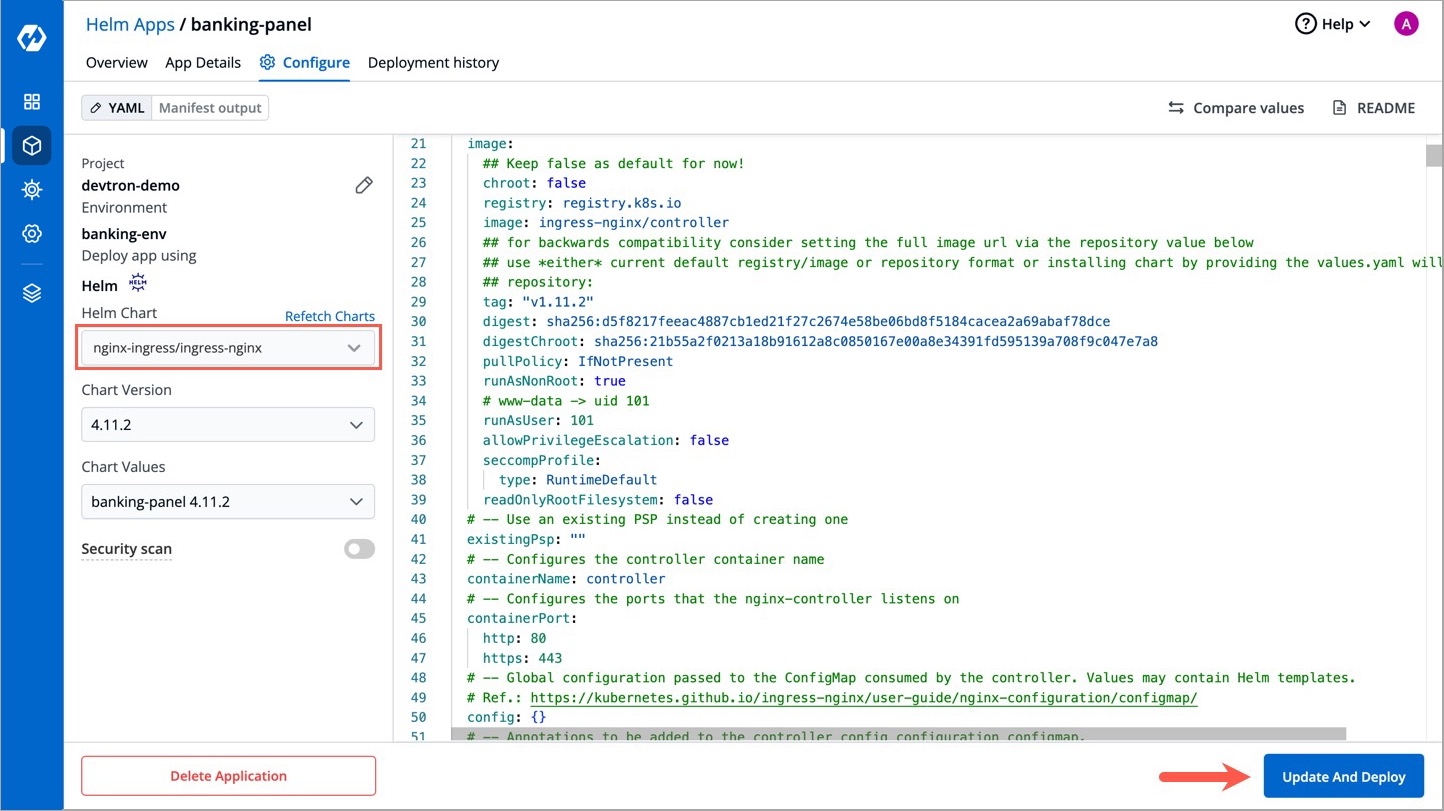

  • For upgrade, click on Helm Chart field, search a chart name, change its values corresponding, and click Update And Deploy.

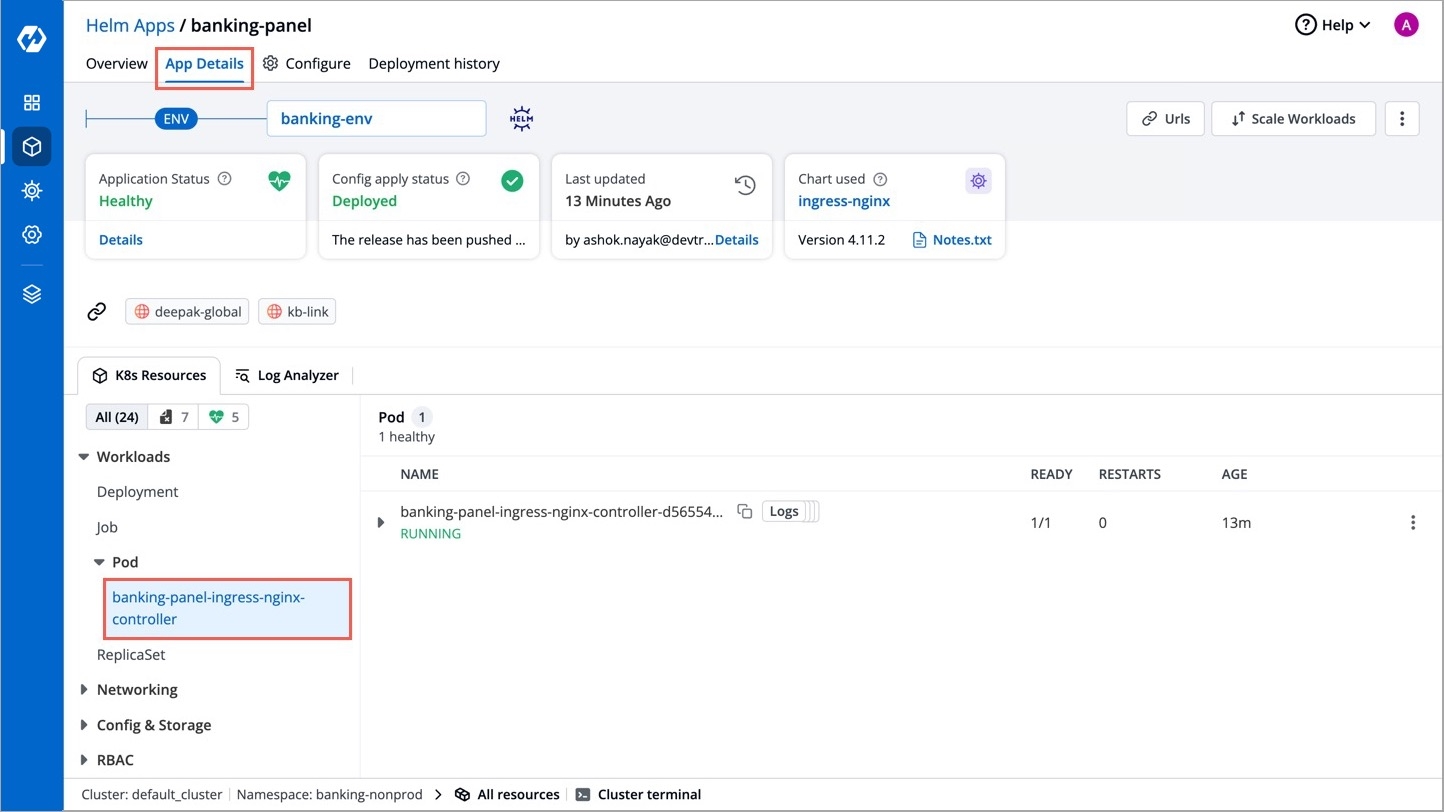

  • After an update or upgrade, you will land on the App Details page where you can check the pods and service name.

5. Delete Chart Instances

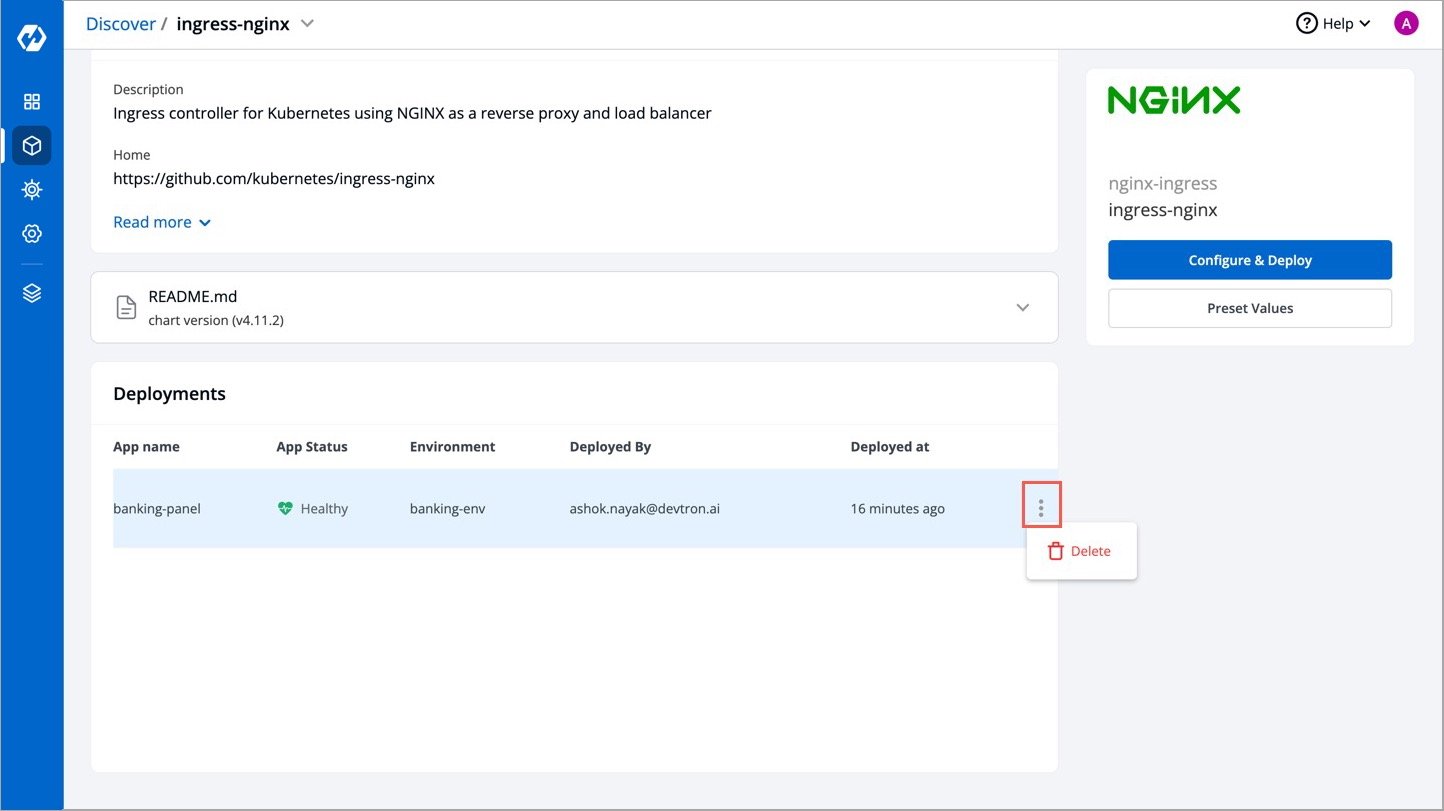

Clicking on View Chart in Chart Used section in the App Details page will redirect you to the Chart Details page where you can see the number of instances installed by that chart along with an option to delete those chart instances too.

Shows the latest default value or you may

create a custom value
